D-tap to NP-F550/970/770 Double-Sided Dummy Battery with Voltage Display and Type-C Input/Output Port for Atomos Ninja/Shinobi Monitors, Wireless Video Transmission, LED Lights, etc

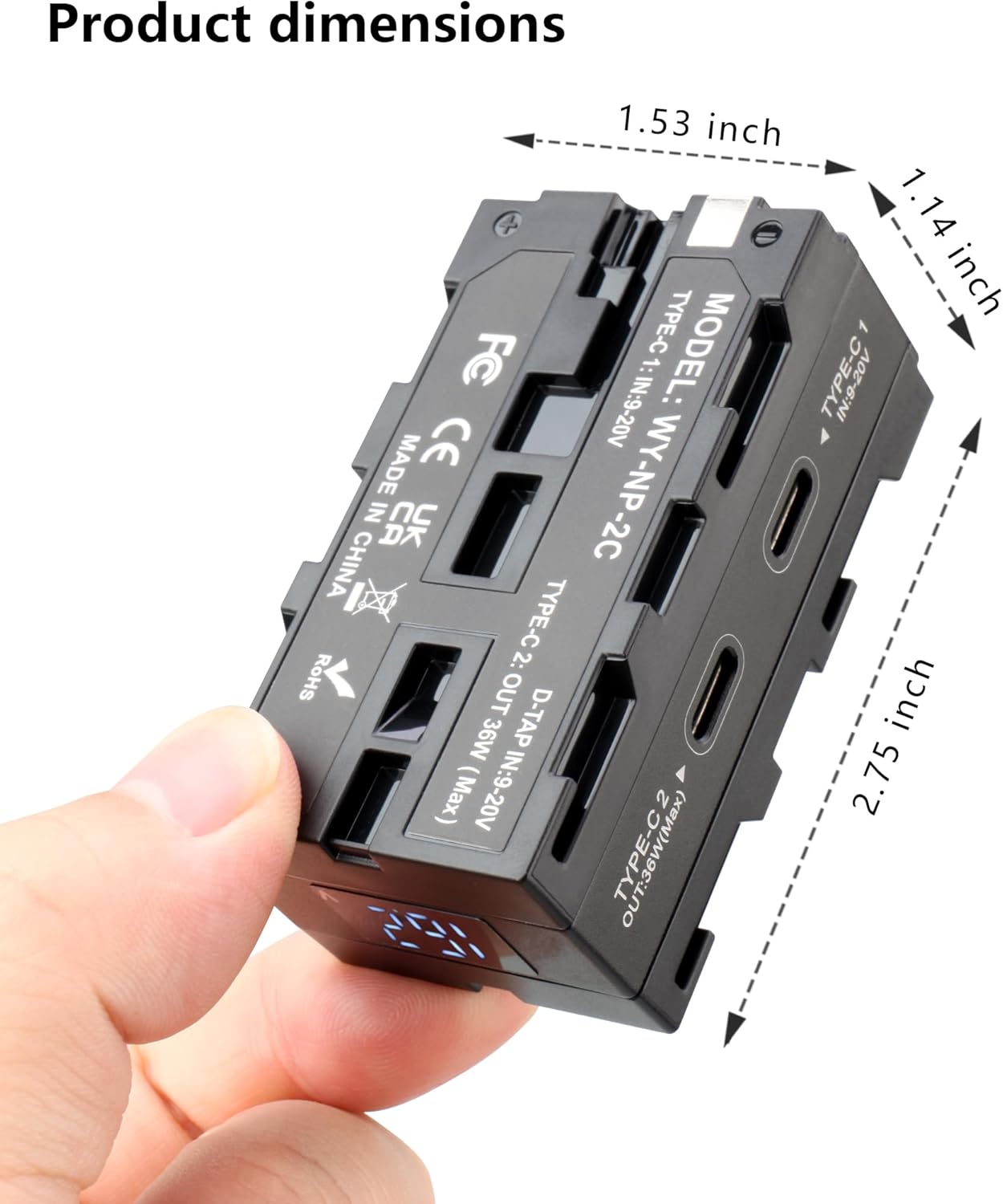

KOCACKOO Double-Sided NP-F Series Dummy Battery The KOCACKOO double-sided NP-F series dummy battery is specifically designed for wireless image transmission, monitor fixation, and power supply. With three outputs, it is convenient for power supply and space-saving. The electric voltage digital display screen allows real-time monitoring of the battery power status. The double-sided NP-F dummy battery interface is designed for monitors and image transmission, while the Type-C output interface powers cameras, phones, and other devices. The new structure integrates multiple functions, protects circuits, and is lightweight, portable, and extremely convenient. Parameter: D-Tap input interface: DC 9-20V Type-C input interface: 9-20V input (the total power of Type-C input should be greater than 45W) Double-sided NP-F output interface: DC 8V/8A (the two interfaces share 8A) Type-C output: Supports PD5/9/12V, 36W (Max) Size: 70*39*29MM (without power cable) Cable specification: Spring wire OD5.0, wire 0.75 square (before stretching: 260mm, after stretching: ≤600mm) Product weight: 100g Note: The product is not decoded and cannot supply power to the camera. (When the input is 9V, the output may only be 7.8V.) It can be used normally if the voltage is properly stepped down, but the Type-C output is limited to 5V. When using the Type-C input port to connect to the power supply, it supports a 9-20V voltage input. It is recommended to use a power supply with a total power of ≥ 45W. Package List: 1 x D-Tap to NP-F double-sided dummy battery

• 【Multifunction】KOCACKOO D-Tap to Double-sided NP-F Series Dummy Battery is designed for wireless image transmission, monitor power supply, and fixation. It allows you to mount monitors and wireless video transmission devices on both sides while providing a stable power connection through a V-Mount battery. This design keeps your rig compact and reduces the number of batteries or mounts needed, ensuring seamless operation.
• 【Newly Upgraded】Equipped with a voltage display screen, it monitors the battery level in real-time, ensuring stable equipment operation. The Type-C input port supports connections to portable power banks with Type-C PD output, V-mount batteries, and more. (Note: The total input power of Type-C should be greater than 45W for optimal performance.)

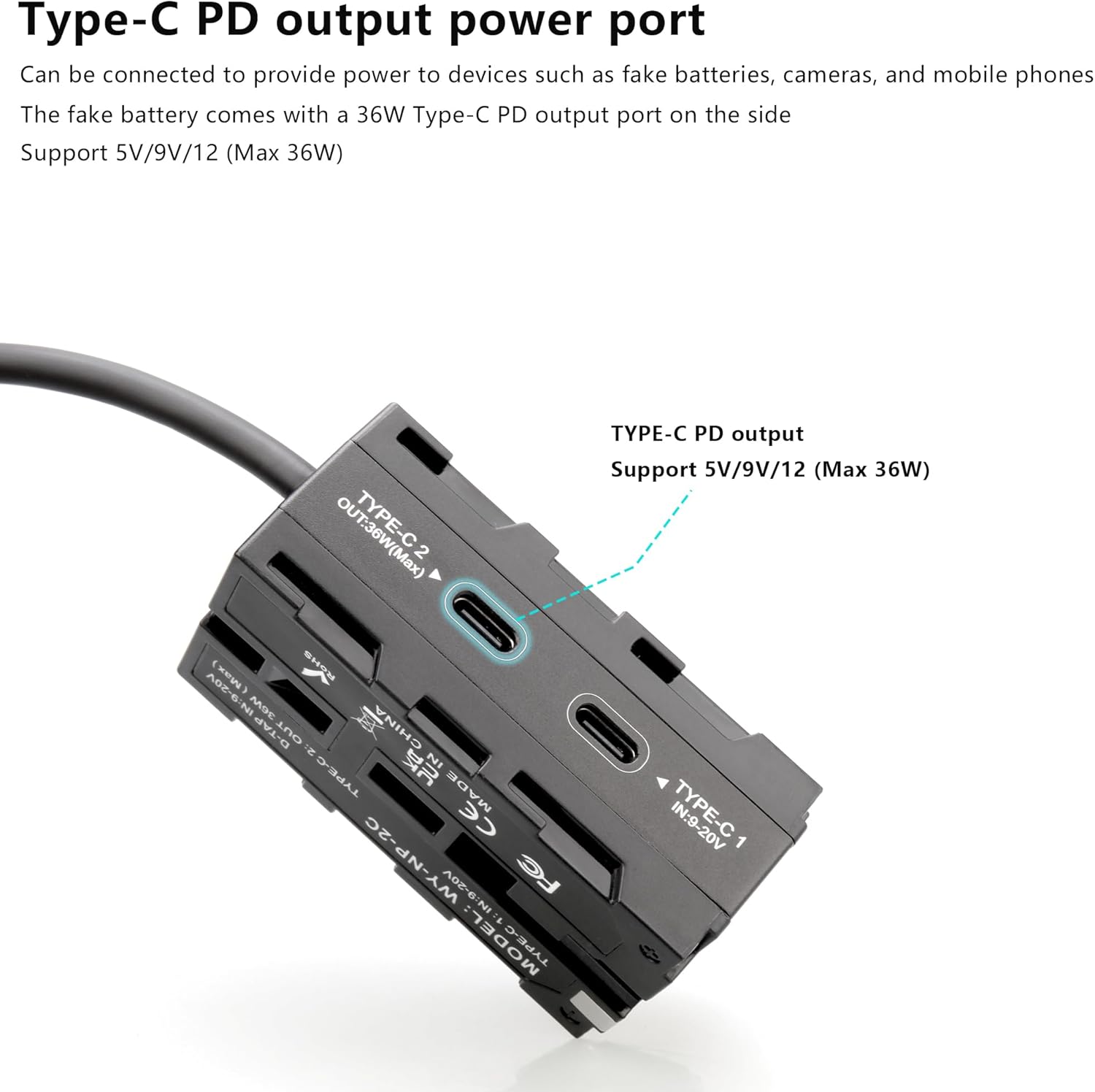

• 【Input/Output】This product features two input functions: a D-TAP interface with 9-20V input and a Type-C interface with 9-20V input (recommended total power for Type-C input: ≥45W). It also offers three output functions. The double-sided NP-F dummy battery interface provides 8V/8A and 64W output power, enabling simultaneous power supply for wireless image transmission and monitoring. Additionally, the Type-C output port supports PD 5/9/12V at 36W, suitable for powering devices like cameras or mobile phones.

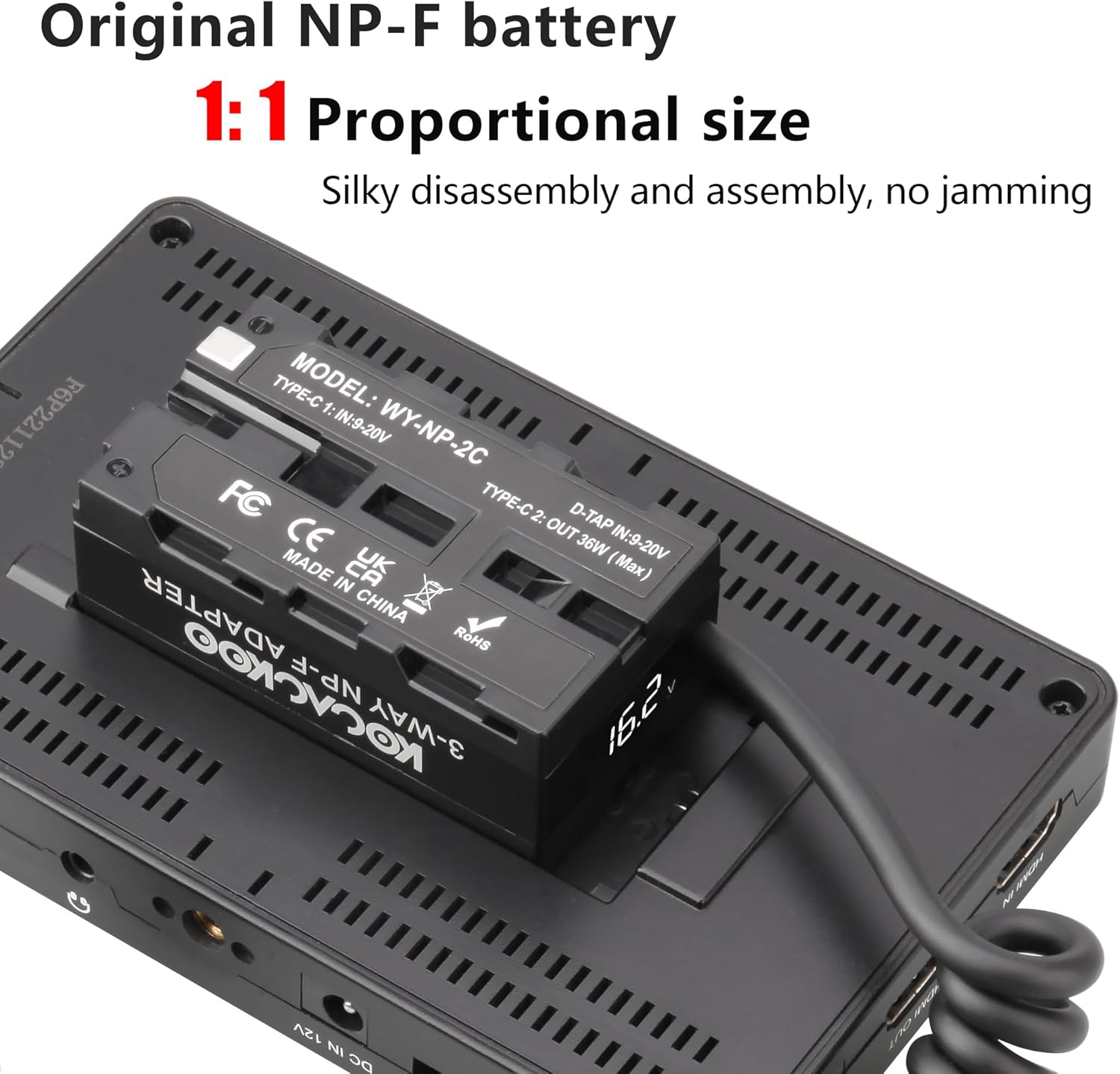

• 【High Quality, Wide Compatible】Featuring a new structural design, the middle frame is made of CNC aluminum alloy, ensuring strength, safety, and reliability. NP-F double-sided dummy battery, which can replace Sony L series NP-F970 NP-F750 NP-F550 battery and is ideal for monitors, wireless video transmission, LED lights, and more. (Note: This battery is not decoded and is not suitable for use with cameras.)
• 【Reliable】Built with input and output reverse protection, high voltage protection, and overload protection circuits, this dummy battery ensures safe and secure operation. It supports a wide voltage power supply with a high conversion efficiency of 96%, generating low heat while delivering high power. This makes it ideal for continuous shooting without power interruptions.
