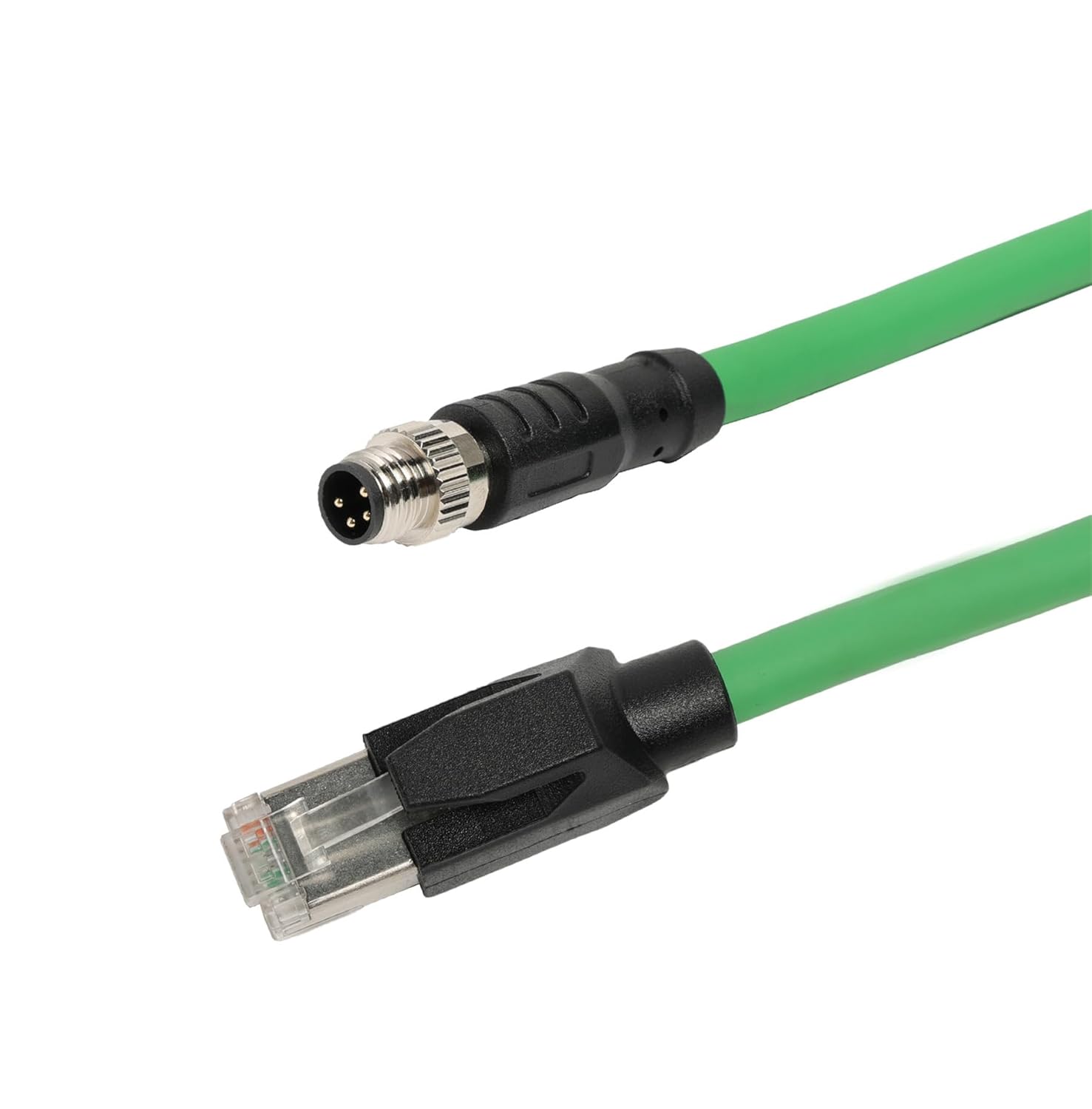

Industrial Cable for Beckhoff Actuator Sensor EtherNet EtherCAT Profinet Fieldbus Automation Control, M8 4 Pin to RJ45 Cat5e Connector, PUR Shielded, 5M

M8 4 Pin A-coded connector, control, power and network cable for sensor actuator. Connector type: M8 to RJ45 cat5e Data transfer rate: 1000 Mbps Stanard EIA/TIA 568B Rated voltage: 60 VAC/ 75VDC Rated current: 4 A Conductor material: copper  Wire Specifications: 22 AWG 2*2*0.3 mm² Wire diameter: 6.5mm Cable jacket: PUR Shielding Type: Double Shielding (Braided + Aluminum Foil) Insulation resistance ≥ 100 MΩ Ambient temperature (operation): -40 °C to 80 °C M8 Connectors and Cable Assemblies feature a rugged, space-saving design that withstands harsh industrial and weather environments, making them ideal for use in miniature sensors and actuators found in industrial control applications. Sealed IP67 rating waterproof design. The m8 sensor connector features a threaded locking mechanism that provides a secure and reliable connection. It helps to prevent accidental disconnections due to vibrations or movements. The shielded connectors and cables protect signals from electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity and accuracy. We make custom cables.

• EtherCAT M8 A-coded 4pin male to RJ45 connector, CAT 5e cable for Beckhoff sensors, providing network, data communication, control, power
• M8 cable is widely utilized in a diverse range of industrial and automation applications, including actuators, sensors (such as proximity, photoelectric, ultrasonic, and temperature sensors), and network communication systems. It supports various industrial protocols like Fieldbus, PROFINET, and EtherCAT, making it ideal for robotics object detection and navigation, and automotive uses. Additionally, it is commonly employed in machine tooling, computers, PLCs, and process control systems
• [CAT.5e Cable] The cable transmits data high speed and stability, up to 1 Gbps. Green PUR jacket, 22AWG. It is resistant to abrasion, oil, dirt, oxidation, bending, heat, flame retardant. It is highly flexible, waterproof dust-proof IP67 and can be used in drag chains and harsh industrial environments
• [M8 4 pin A-coded to RJ45 Connectors] With locking threaded and strain relief for reliable connectivity, resist to vibration. Gold-plated contacts. Metal housing (with shielding) can be shielded from EMI / RFI interference in all directions
• [Cable Length] 5M / 16.4ft. Part number ZK1090-3191-0xxx
