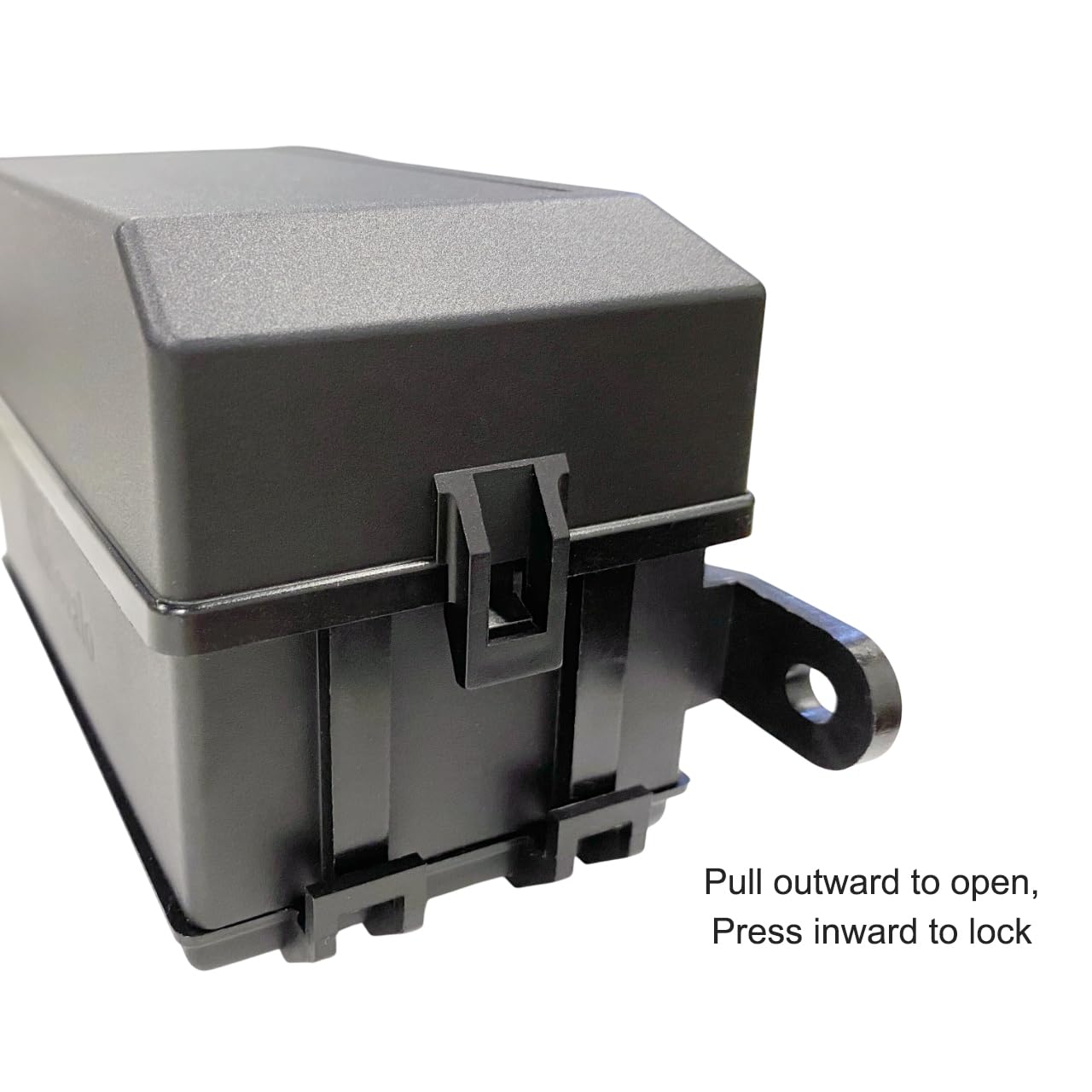

12V 10-Way Pre-Wired Relay and Fuse Block – Splash-Resistant, High-Capacity Automotive & Marine Power Panel

Package Includes1 × Pre-Wired 10 Relay & 10 Fuse Block15 × Blade Fuses (10A x 7, 15A x 2, 20A x 2, 25A x 2, 30A x 2 – includes 5 spares)2 × copper wire pairs (2.5mm², approx. 14 AWG) Pigtail Length22 cm (8.66 inches) SpecificationsMaterial: Nylon + Nickel-Plated BrassOperating Voltage: DC 12VRated Current: 25A Continuous / 40A Max per CircuitTemperature Range: -40°C to 85°C (-40°F to 185°F) Expandable DesignThe R10F10 model includes 5 reserved fuse slots for future expansion. We provide two pairs of 30cm copper wires (2.5mm², approx. 14 AWG) with crimped terminals on one end, allowing users to build additional circuits as needed. In future versions, we plan to offer optional expansion terminals for easier integration.

• 10 Circuits – Handle More Loads】Upgraded with 10 fused relay outputs for expanded control. Perfect for complex 12V systems in vehicles, RVs, or marine setups
• 2x 5-Pin Relays for Dual Output Control】Includes 2 five-pin relays with NC and NO terminals—ideal for reversing circuits or dual-function devices. The other 8 relays use standard 4-pin configuration
• Pre-Wired for Easy Installation】All wires are professionally pre-wired and clearly labeled. No complicated wiring needed—just plug and go
• Heavy-Duty Relays – 40A Max / 25A Continuous】Reliable relays support high current loads with excellent heat dissipation. Built for safe, long-term operation
• Clean Layout & Wide Compatibility】Organized internal wiring and labeled outputs ensure easy setup. Fits cars, trucks, RVs, boats, UTVs, and more 12V DC applications
